    Nickel Plated Brass Metric Cable Glands - K151-1063-00
    Cable Glands/Grommets - Nickel Plated Brass Metric Cable Glands - K151-1063-00
    DESCRIPTION

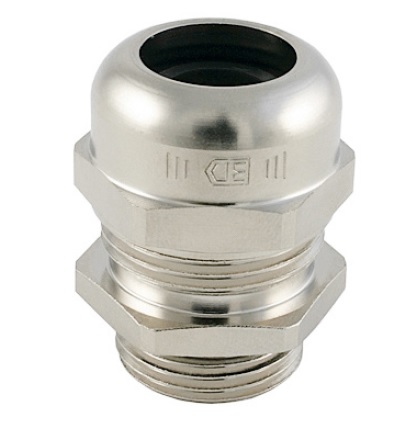

    WADI one EMC-cable gland. When safer signals mean survival. M20x1.5 thread length 8.0 min/max cable diameter 8-15 Dome nut - Brass CuZn39Pb3, nickel-plated, Sealing Insert - TPE TPS

    Cable Glands/Grommets - Nickel Plated Brass Metric Cable Glands - K151-1063-00
    Cable Glands/Grommets - Nickel Plated Brass Metric Cable Glands - K151-1063-00
    EN Std - EN 45545-3 VDE - 40050445
    FEATURES
    • For cables with shielding
    • Quick and easy EMC connection of the cable shield via the contacting spring with the gland body and the housing potential
    • Large-area sealing protects the cable
    • Integraded anchorage with high retention
    • Wide sealing and clamping
    • The inner sealing ring can be removed easily for larger cables, range with sealing Ring 40-46mm, range without 46-53mm
    • High UV, ozone and weather resistance

    SPECIFICATION
    Additional Material DetailDome nut - Brass CuZn39Pb3, nickel-plated, Sealing Insert - TPE TPS
    Body MaterialBrass CuZn39Pb3, nickel-plated
    Min Temperature Rating °C-40
    Max Temperature Rating °C100
    IP RatingIP66 / IP68 - 10 bar (30 min.) / IP69
    Thread SizeM63
    Clamping Range Min (mm)40
    Clamping Range Max (mm)53
    External Connecting Thread TypeMetric
    Thread Length (mm)10
    Height (mm)53
