Debox® - Debox V

DESCRIPTION
Reg. Design

Debox V is the smallest junction box on the market that can accommodate 5 x 3-pole connectors. Debox V is ideal for electricians who prefer to use their own connectors, but are looking for a quality, junction box that saves valuable time and makes installation easier. Also there is no need to use a screwdriver to securely join wires and mount the box itself.

Quote Me Datasheet

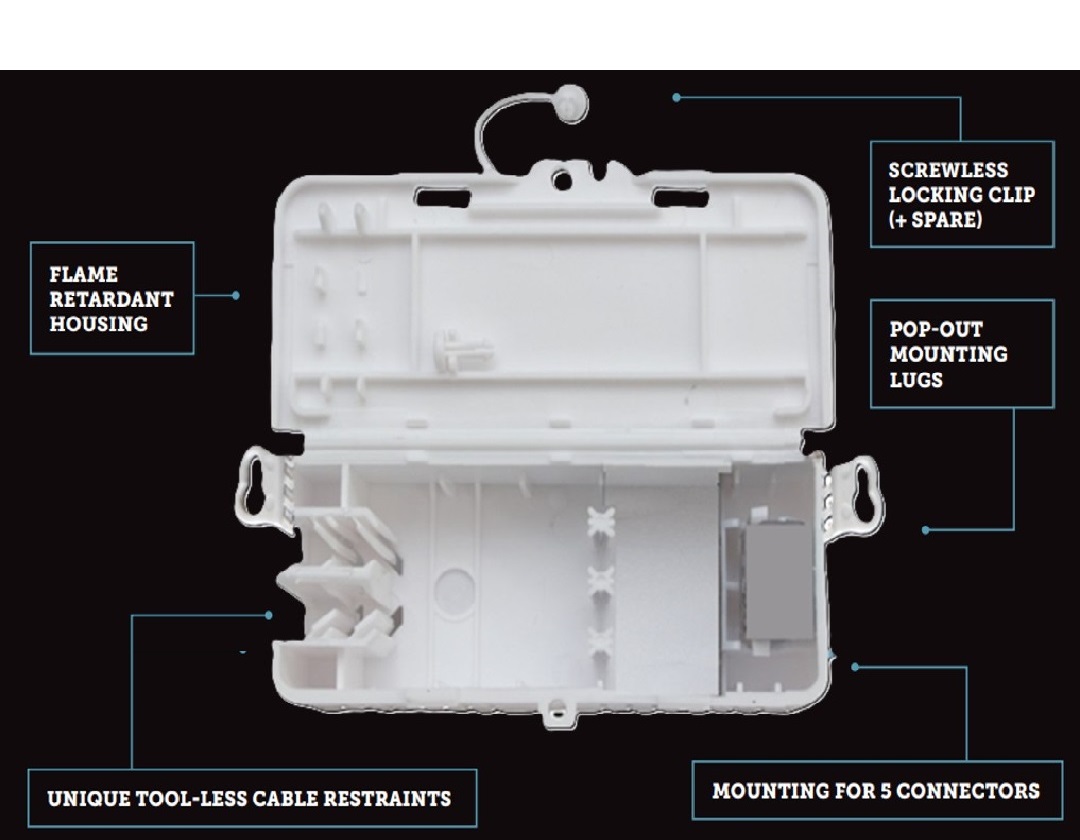

FEATURES

Saves Time & Money
Maintenance Free - 100% Tool-less Box and Assembly.
Smallest Junction Box for Five x 3-pole connectors
EN60598-1 (Glow Wire Test 650°C)
Flame Retardant Housing
Complete with 2 Locking Clips (one spare)
External Fixing Lugs
Maintenance Free
Unique built in double Cable Strain Relief
Registered design: 002553735-0001

SPECIFICATION

Body Material	Polypropylene
Colour	White
Min Conductor Size (Sq mm)	0.25
Max Conductor Size (Sq mm)	4.0
Max Current (A)	32
Height (mm)	35
Width (mm)	47
Length (mm)	107
Min Temperature Rating °C	-20
Max Temperature Rating °C	85
