    Stainless Steel Door Enclosures - DEDSS3101
    Enclosures - Stainless Steel Door Enclosures - DEDSS3101
    DESCRIPTION

    IP66, IK10 Lockable Galvanised Stainless Steel Enclosure 300x200x150 with galvanised wall mounting brackets. Stainless Steel grade 304 polished finish housing and galvanised back plate.

    Enclosures - Stainless Steel Door Enclosures - DEDSS3101
    Enclosures - Stainless Steel Door Enclosures - DEDSS3101
    Enclosures - Stainless Steel Door Enclosures - DEDSS3101
    Enclosures - Stainless Steel Door Enclosures - DEDSS3101
    Recent News

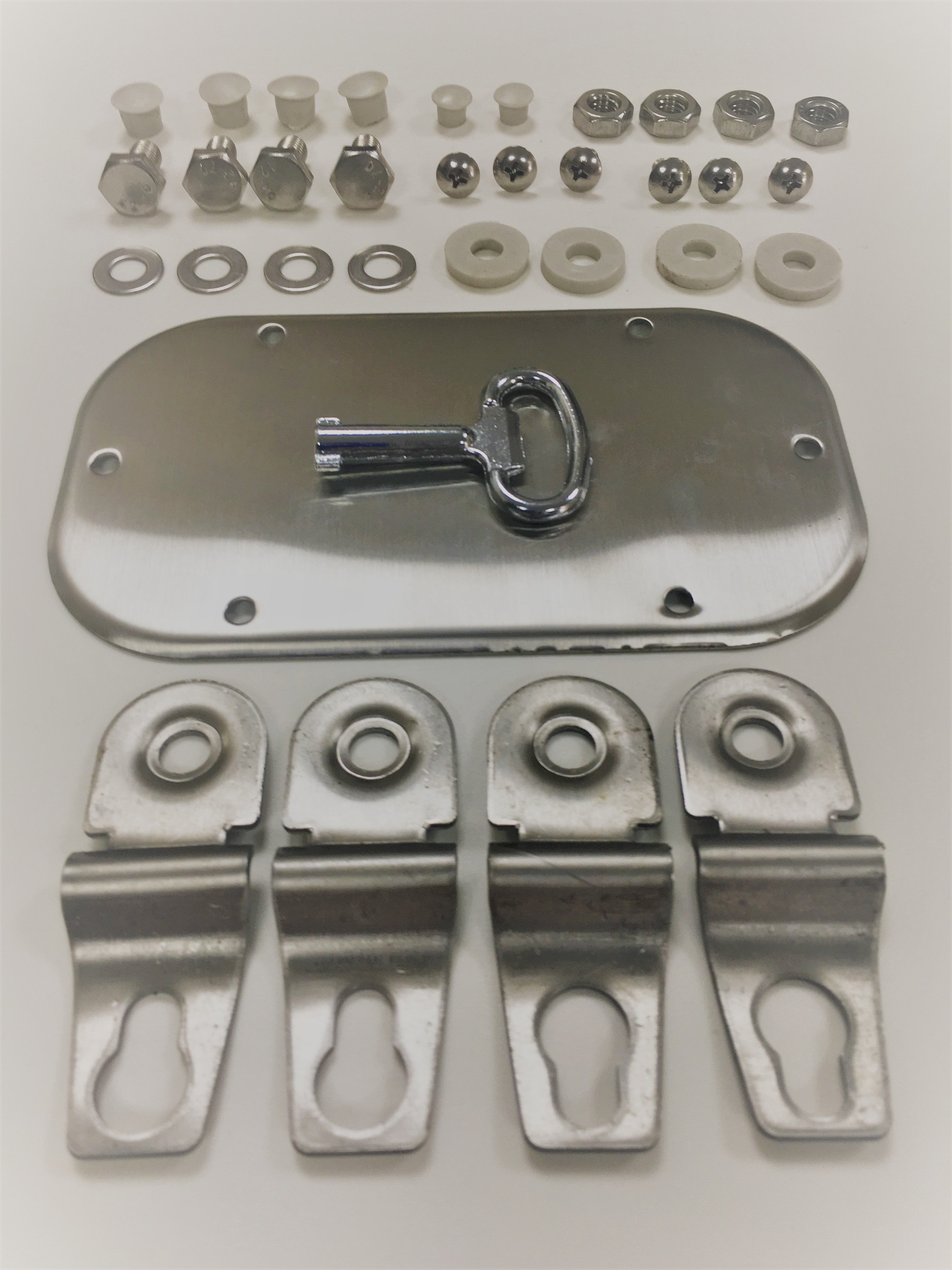

    FEATURES
    • Pre-wired & fitted earth strap
    • Stainless steel housing (Grade 304)
    • Metal lock & key
    • 2mm Galvanised steel back plate guaranteed for 3 years against corrosion
    • Gland plate with IP66 sealing gasket for top or base mounting
    • Supplied c/w galvanised wall mounting brackets
    • All threaded studs are stainless steel thus fully corrosion proof
    • Compliance to IEC 60529
    • 1 x key

    SPECIFICATION
    Product TypeSolid door enclosures
    Door StyleSolid
    Enclosure MaterialStainless Steel Grade 304
    IP Rating66
    Max Temperature Rating °C55
    Height (mm)300
    Width (mm)200
    Depth (mm)150
    Gland Plate (mm)168x95
    Mounting Plate (mm)265x150
    Number of Locks1
