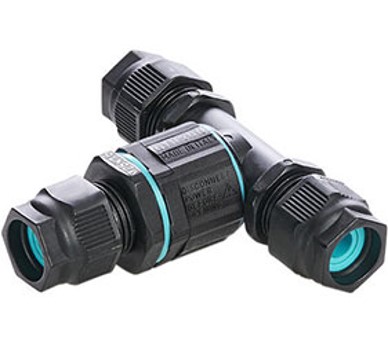

TeeTube - CWP-TTZ-BCS-O03 (THB.390.C1A)
DESCRIPTION
TeeTube Mini 3 Pole Screw - end barrier contact 7mm to 13.5mm, 4 mm max conducter size IP68 32A 450V 3 cable entries
TEETUBE RANGE FEATURES
- Tough, robust construction with large cable range acceptance
- Straight through, T splitter and Y splitter versions available
- Dual terminal versions available for easy fitting and looping of conductors (2+2 and 3+3 poles)
- Temperature rating of –40°C to +125°C
Features may vary by product throughout the range.
SPECIFICATION
| Junction connector | |
| 3 | |
| 32 | |
| 450 | |
| 3 | |
| 1.5 | |
| 7 | |
| 13.5 | |
| 2.5 Nm | |
| 68 | |
| -40 | |
| 125 | |
| PA66 GF UL94 V0 |
