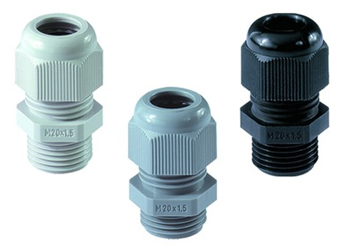

IP68 NYLON PERFECT CABLE GLANDS

Features

Measurement: Metric

Rated to IP68

Temperature Range of -20°C to +100°C

Quick & easy installation

No special tools needed

Material: Nylon

Colour: Grey RAL 7001

Product Code	Size	L (mm)	H (mm)	ØC (mm)
50.612 PA7001	M12	31	8	3-6
50.616 PA7001	M16	31.5	8	5-10
50.620 PA7001	M20	36	8	8-13
50.625 PA7001	M25	43	8	11-17
50.632 PA7001	M32	50	10	15-21
50.640 PA7001	M40	51	10	19-28
50.650 PA7001	M50	61.5	12	27-35
50.663 PA7001	M63	65.5	12	32-42

Material: Nylon

Colour: Grey RAL 7035

Product Code	Size	L (mm)	H (mm)	ØC (mm)
50.612 PA7035	M12	31	8	3-6
50.616 PA7035	M16	35.5	8	5-10
50.620 PA7035	M20	36	8	8-13
50.625 PA7035	M25	43	8	11-17
50.632 PA7035	M32	50	10	15-21
50.640 PA7035	M40	51	10	19-28
50.650 PA7035	M50	61.5	12	27-35
50.663 PA7035	M63	65.5	12	32-42

Material: Nylon

Colour: Black RAL 9005

Product Code	Size	L (mm)	H (mm)	ØC (mm)
50.612 PA/SW	M12	31	8	3-6
50.616 PA/SW	M16	35.5	8	5-10
50.620 PA/SW	M20	36	8	8-13
50.625 PA/SW	M25	43	8	11-17
50.632 PA/SW	M32	50	10	15-21
50.640 PA/SW	M40	51	10	19-28
50.650 PA/SW	M50	61.5	12	27-35
50.663 PA/SW	M63	65.5	12	32-42

KWIK-FIX CABLE GLANDS

Features

Measurement: Metric

Rated to IP68

Temperature Range of -20°C to +100°C

Quick & easy installation

Assemble from one side

No special tools needed

Material: Polyamide PA6 V2

Product Code	Colour	Thread	H (mm)	ØC (mm)
K341-1016-00	Grey RAL 7035	M16	38.5	5-10
K341-1020-00	Grey RAL 7035	M20	42.5	8-13
K341-1025-00	Grey RAL 7035	M25	48	11-17
K341-1016-01	Grey RAL 7001	M16	38.5	5-10
K341-1020-01	Grey RAL 7001	M20	42.5	8-13
K341-1025-01	Grey RAL 7001	M25	48	11-17
K341-1016-02	Black RAL 9005	M16	38.5	5-10
K341-1020-02	Black RAL 9005	M20	42.5	8-13
K341-1025-02	Black RAL 9005	M25	48	11-17

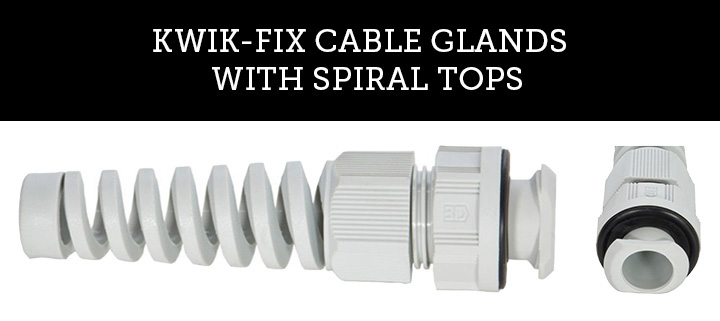

KWIK-FIX CABLE GLANDS WITH SPIRAL TOPS

Product Code	Colour	Size	Thread Height	ØC (mm)
K351-1020-00	Grey RAL 7035	M20	106	8-13
K351-1020-01	Grey RAL 7001	M20	106	8-13
K351-1020-02	Black RAL 9005	M20	106	8-13

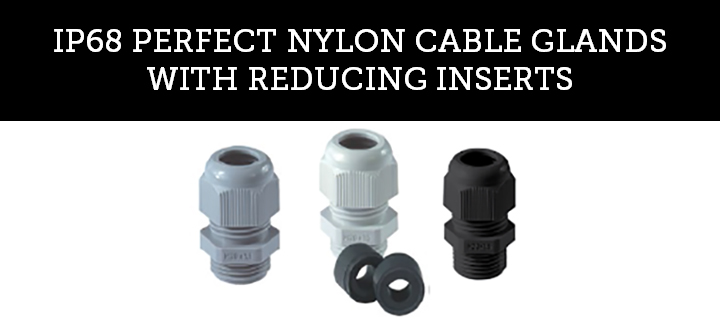

IP68 PERFECT NYLON CABLE GLANDS WITH REDUCING INSERTS

Measurement: Metric

Material: Nylon PA6

Colour: Grey RAL 7001

Product Code	Size	L (mm)	H (mm)	ØC (mm)
50.612 PA/R	M12	31	8	2-5
50.616 PA/R	M16	31.5	8	3-10
50.620 PA/R	M20	36	8	5-13
50.625 PA/R	M25	43	8	8-17
50.632 PA/R	M32	50	10	12-21
50.640 PA/R	M40	51	10	16-28
50.650 PA/R	M50	61.5	12	21-36
50.663 PA/R	M63	65.5	12	27-48

Measurement: Metric

Material: Nylon PA6

Colour: Grey RAL 7035

Product Code	Size	L (mm)	H (mm)	ØC (mm)
50.612 PA/7035	M12	31	8	2-5
50.616 PA/7035	M16	31.5	8	3-10
50.620 PA/7035	M20	36	8	5-13
50.625 PA/7035	M25	43	8	8-17
50.632 PA/7035	M32	50	10	12-21
50.640 PA/7035	M40	51	10	16-28
50.650 PA/7035	M50	61.5	12	21-36
50.663 PA/7035	M63	65.5	12	27-48

Measurement: Metric

Material: Nylon PA6

Colour: Grey RAL 7035

Product Code	Size	L (mm)	H (mm)	ØC (mm)
50.612 PA/RSW	M12	31	8	2-5
50.616 PA/RSW	M16	31.5	8	3-10
50.620 PA/RSW	M20	36	8	5-13
50.625 PA/RSW	M25	43	8	8-17
50.632 PA/RSW	M32	50	10	12-21
50.640 PA/RSW	M40	51	10	16-28
50.650 PA/RSW	M50	61.5	12	21-36
50.663 PA/RSW	M63	65.5	12	27-48

Measurement: Metric

Material: Nylon PA6

Colour: Grey RAL 7001

Product Code	Size	L (mm)	H (mm)	ØC (mm)
50.620 PA7001FK1	M20	36	8	5x12 max, 2x8 min
50.625 PA7001FK1	M25	43	8	6x16.3 max, 2x10 min
50.632 PA7001FK1	M32	50	10	9x20 max, 3x12 min
50.640 PA7001FK1	M40	51	10	10x27 max, 3x13min
50.650 PA7001FK1	M50	61.5	12	13x34 max, 12x23 min
50.663 PA7001FK1	M63	65.5	12	15x46 max, 6x32 min

Measurement: Metric

Material: Nylon PA6

Colour: Grey RAL 7035

Product Code	Size	L (mm)	H (mm)	ØC (mm)
50.620 PA7035FK1	M20	36	8	5x12 max, 2x8 min
50.625 PA7035FK1	M25	43	8	6x16.3 max, 2x10 min
50.632 PA7035FK1	M32	50	10	9x20 max, 3x12 min
50.640 PA7035FK1	M40	51	10	10x27 max, 3x13min
50.650 PA7035FK1	M50	61.5	12	13x34 max, 12x23 min
50.663 PA7035FK1	M63	65.5	12	15x46 max, 6x32 min

Measurement: Metric

Material: Nylon PA6

Colour: Black 9005

Product Code	Size	L (mm)	H (mm)	ØC (mm)
50.620 PASWFK1	M20	36	8	5x12 max, 2x8 min
50.625 PASWFK1	M25	43	8	6x16.3 max, 2x10 min
50.632 PASWFK1	M32	50	10	9x20 max, 3x12 min
50.640 PASWFK1	M40	51	10	10x27 max, 3x13min
50.650 PASWFK1	M50	61.5	12	13x34 max, 12x23 min
50.663 PASWFK1	M63	65.5	12	15x46 max, 6x32 min

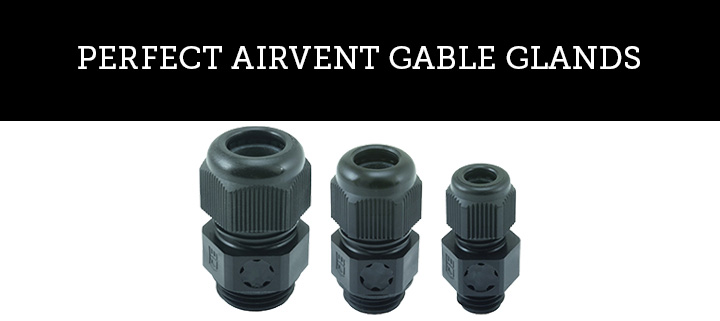

AIR VENTED CABLE GLANDS

Product Code	Colour	Size	Thread Height	ØC (mm)
K348-1012-00	Grey RAL 7035	M12	36	3-6.5
K348-1012-01	Grey RAL 7001	M12	36	3-6.5
K348-1012-02	Black RAL 9005	M12	36	3-6.5
K348-1016-00	Grey RAL 7035	M16	40	5-9.5
K348-1016-01	Grey RAL 7001	M16	40	5-9.5
K348-1016-02	Black RAL 9005	M16	40	5-9.5
K348-1020-00	Grey RAL 7035	M20	41	8-13
K348-1020-01	Grey RAL 7001	M20	41	8-13
K348-1020-02	Black RAL 9005	M20	41	8-13

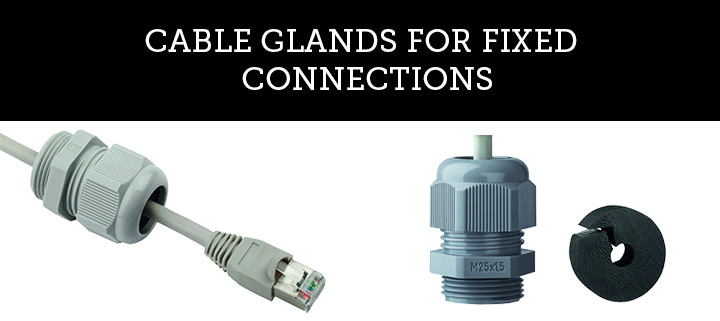

CABLE GLANDS FOR FIXED CONNECTIONS

Product Code	Colour	Size	Thread Height	ØC (mm)
K345-1025-00	Grey RAL 7035	M25	43	11-17
K345-1025-01	Grey RAL 7001	M25	43	11-17
K345-1025-02	Black RAL 9005	M25	43	11-17

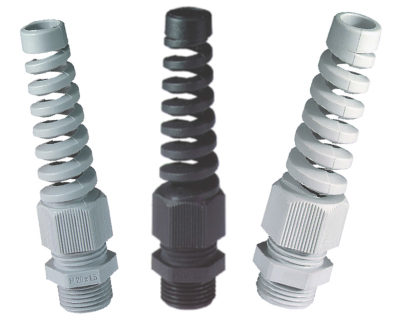

IP68 PERFECT NYLON CABLE GLANDS WITH SPIRAL TOP CABLE PROTECTORS

Features

Measurement: Metric

Rated to IP68

Temperature Range of -20°C to +100°C

Quick & easy installation

No special tools needed

Material: Nylon

Colour: Grey RAL 7001

Product Code	Size	L (mm)	H (mm)	ØC (mm)
50007M12PABS	M12	63.5	8	3-6.5
50011M16PABS	M16	94.5	15	5-10
50013M20PABS	M20	101.5	11	6-12
50016M20PABS	M20	116	15	10-14
50021M25PABS	M25	132.5	15	13-18

Material: Nylon

Colour: Grey RAL 7035

Product Code	Size	L (mm)	H (mm)	ØC (mm)
50007M12BS7035	M12	63.5	8	3-6.5
50011M16BS7035	M16	94.5	15	5-10
50013M20BS7035	M20	101.5	11	6-12
50016M20BS7035	M20	116	15	10-14
50021M25BS7035	M25	132.5	15	13-18

Material: Nylon

Colour: Black RAL 9005

Product Code	Size	L (mm)	H (mm)	ØC (mm)
50007M12BSSW	M12	63.5	8	3-6.5
50011M16BSSW	M16	94.5	15	5-10
50013M20BSSW	M20	101.5	11	6-12
50016M20BSSW	M20	116	15	10-14
50021M25BSSW	M25	132.5	15	13-18

RAILWAY CERTIFIED CABLE GLANDS PA6 V0 NYLON PERFECT METRIC IP68

Features

Measurement: Metric

Rated to IP68

+960°C glow wire test at 0.8mm wall thickness

12/F2 approval according to French standard NFF 16-101

Material: Polyamide PA6 V0

Sealing Ring Material: Polychloroprene-Nitrile rubber CR/NBR

Colour: Grey RAL 7032

Product Code	Size	L (mm)	H (mm)	ØC (mm)
50.612 PA/FL	M12	31	8	3-6
50.616 PA/FL	M16	31.5	8	5-10
50.620 PA/FL	M20	36	8	8-13
50.625 PA/FL	M25	43	8	11-17
50.632 PA/FL	M32	50	10	15-21
50.640 PA/FL	M40	51	10	19-28
50.650 PA/FL	M50	61.5	12	27-35
50.663 PA/FL	M63	65.5	12	32-42

Colour: Black RAL 9005

Product Code	Size	L (mm)	H (mm)	ØC (mm)
50.612 PA/FLSW	M12	31	8	3-6
50.616 PA/FLSW	M16	31.5	8	5-10
50.620 PA/FLSW	M20	36	8	8-13
50.625 PA/FLSW	M25	43	8	11-17
50.632 PA/FLSW	M32	50	10	15-21
50.640 PA/FLSW	M40	51	10	19-28
50.650 PA/FLSW	M50	61.5	12	27-35
50.663 PA/FLSW	M63	65.5	12	32-42

NYLON PERFECT METRIC ATEX CERTIFIED IP66 CABLE GLANDS

Features

Measurement: Metric

Rated to IP66

Polyamide PA6

Equipment group II

Category / Zone: 2G and 2D/1, 2, 21, 22

Material: Polyamide PA6

Colour: Black RAL 9005

Product Code	Size	L (mm)	H (mm)	ØC (mm)	Temp.
GHG9601955R0001	M12	31	8	5-7	-20°C to +70°C
GHG9601955R0002	M16	31.5	8	7-10	-20°C to +70°C
GHG9601955R0003	M20	36	8	9.5-13	-20°C to +70°C
GHG9601955R0004	M25	43	8	13.5-17.5	-20°C to +70°C
GHG9601955R0005	M32	50	10	17.5-21	-55°C to +70°C
GHG9601955R0006	M40	51	10	22-28	-55°C to +70°C
GHG9601955R0007	M50	61.5	12	28-35	-55°C to +70°C
GHG9601955R0008	M63	65.5	12	36-48	-55°C to +70°C

Material: Polyamide PA6

Colour: Black RAL 9005

Product Code	Size	L (mm)	H (mm)	ØC (mm)	Temp.
GHG9601955R0021	M12	35	8	5-7	-20°C to +70°C
GHG9601955R0022	M16	39.5	12	7-10	-20°C to +70°C
GHG9601955R0023	M20	42	13	9.5-13	-20°C to +70°C
GHG9601955R0024	M25	48	13	13.5-17.5	-20°C to +70°C
GHG9601955R0025	M32	55	15	17.5-21	-55°C to +70°C
GHG9601955R0026	M40	56	15	22-28	-55°C to +70°C
GHG9601955R0027	M50	69.5	16	28-35	-55°C to +70°C
GHG9601955R0028	M63	66.5	16	36-48	-55°C to +70°C

Material: Polyamide PA6

Colour: Black RAL 9005 & Blue RAL 5015 Cap

Product Code	Size	L (mm)	H (mm)	ØC (mm)	Temp.
GHG9601955R0101	M12	31	8	5-7	-20°C to +70°C
GHG9601955R0102	M16	31.5	8	7-10	-20°C to +70°C
GHG9601955R0103	M20	36	8	9.5-13	-20°C to +70°C
GHG9601955R0104	M25	43	8	13.5-17.5	-20°C to +70°C
GHG9601955R0105	M32	50	10	17.5-21	-55°C to +70°C
GHG9601955R0106	M40	51	10	22-28	-55°C to +70°C
GHG9601955R0107	M50	61.5	12	28-35	-55°C to +70°C
GHG9601955R0108	M63	65.5	12	36-48	-55°C to +70°C

Material: Polyamide PA6

Colour: Black RAL 9005 & Blue RAL 5015 Cap

Product Code	Size	L (mm)	H (mm)	ØC (mm)	Temp.
GHG9601955R0121	M12	35	8	5-7	-20°C to +70°C
GHG9601955R0122	M16	39.5	12	7-10	-20°C to +70°C
GHG9601955R0123	M20	42	13	9.5-13	-20°C to +70°C
GHG9601955R0124	M25	48	13	13.5-17.5	-20°C to +70°C
GHG9601955R0125	M32	55	15	17.5-21	-55°C to +70°C
GHG9601955R0126	M40	56	15	22-28	-55°C to +70°C
GHG9601955R0127	M50	69.5	16	28-35	-55°C to +70°C
GHG9601955R0128	M63	66.5	16	36-48	-55°C to +70°C

ACCESSORIES - LOCKNUTS

Features

Measurement: Metric

Temperature Range of -20°C to +100°C

Material: PA6 GF30

Product Code			Size	H (mm)
Grey RAL 7001	Grey RAL 7035	Black RAL 9005
50212 PA7001	50212 PA7035	50212 PA/SW	M12	5.0
50216 PA7001	50216 PA7035	50216 PA/SW	M16	5.0
50220 PA7001	50220 PA7035	50220 PASW	M20	6.0
50225 PA7001	50225 PA7035	50225 PASW	M25	6.0
50232 PA7001	50232 PA7035	50232 PASW	M32	7.0
50240 PA7001	50240 PA7035	50240 PASW	M40	7.0
50250 PA7001	50250 PA7035	50250 PASW	M50	8.0
50263 PA7001	50263 PA7035	50263 PASW	M63	8.0

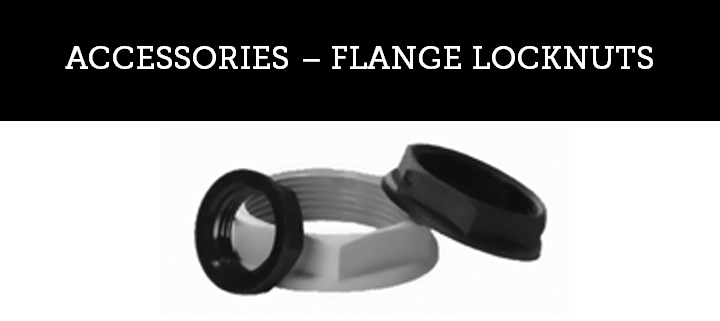

ACCESSORIES - FLANGE LOCKNUTS

Features

Measurement: Metric

Temperature Range of -30°C to +100°C

Material: Nylon 6

Product Code				Size	H (mm)
Grey RAL 7001	Grey RAL 7035	Black RAL 9005	White
DLN167001	DLN167035	DLN16B	DLN16W	M16	7.0
DLN207001	DLN207035	DLN20B	DLN20W	M20	7.0
DLN257001	DLN257035	DLN25B		M25	8.0

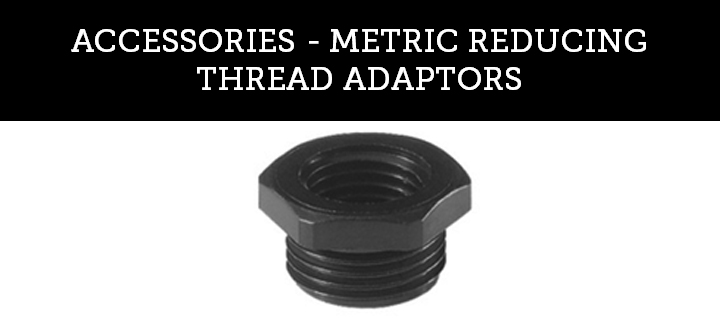

ACCESSORIES - METRIC REDUCING THREAD ADAPTORS

Features

Measurement: Metric

Temperature Range of -30°C to +100°C

Material: PA 6

Colour: RAL 9005

Product Code	Size	L (mm)	W (mm)	SW (mm)
M16M12 PA/SW	M16M12	12	8	24
M20M12 PA/SW	M20M12	12	8	24
M20M16 PA/SW	M20M16	12	8	24
M25M12 PA/SW	M25M12	14	8	29
M25M16 PA/SW	M25M16	14	8	29
M25M20 PA/SW	M25M20	14	8	29
M32M12 PA/SW	M32M12	16	10	36
M32M16 PA/SW	M32M16	16	10	36
M32M20 PA/SW	M32M20	16	10	36
M32M20 PA/SW	M32M20	16	10	36
M40M16 PA/SW	M40M16	16	10	46
M40M20 PA/SW	M40M20	16	10	46
M40M25 PA/SW	M40M25	16	10	46
M40M32 PA/SW	M40M32	18	10	55
M50M20 PA/SW	M50M20	18	10	55
M50M25 PA/SW	M50M25	18	12	55
M50M32 PA/SW	M50M32	18	12	55
M50M40 PA/SW	M50M40	18	12	68
M63M25 PA/SW	M63M25	18	12	68
M63M32 PA/SW	M63M32	18	12	68
M63M40 PA/SW	M63M40	18	12	68
M63M50 PA/SW	M63M50	18	12	68

VENTING ELEMENTS/BREATHER PLUGS

Features

Measurement: Metric

Typical air flow >400 ml/min/cm2 at Δp = 0.07 bar

Water entry pressure ≥ 0.83

Protection grade IP66 / IP68 - 0,6 bar (60 min.)/IP69K

Material: Polyamide PA6

Membrane: PES

Waterproof Enclosures with high protection grades IP67 or IP68 for outdoor use are not automatically sealed against vapour and humid air. To avoid negative pressure, high humidity and condensation inside the enclosure continuous ventilation and pressure equilibrium is necessary. This protection can be achieved by using a venting element which is quick and easy to install.

The body of the venting element is made from a flameproof polyamide PA6 which contains a high-quality, breathable and watertight PES-membrane.

The unit provides a continuous pressure exchange and ventilation between the enclosure and its surroundings while ensuring protection against humidity and achieving a high IP rating of up to IP69K.

Product Code	Colour	Size	Thread Length	O/A Length	AF/Dim'n
JDAE12PA7035	Grey RAL 7035	M12	10	17.8	10
JDAE20PA7035	Grey RAL 7035	M20	10	21.6	27
JDAE40PA7035	Grey RAL 7035	M40	18	35.6	50
JDAE12PA/SW	Black RAL 9005	M12	10	17.8	17
JDAE40PA/SW	Black RAL 9005	M40	18	35.6	50

BLANKING PLUGS WITH SIMPLE SEALING RINGS

Features

Measurement: Metric

With Sealing Ring

Material: Polyamide PA6

Temperature Range of -30°C to +100°C

IP Rating: IP65

With Sealing Ring

Colour: Grey RAL 7001

Product Code	Size	L (mm)	H (mm)	Ø (mm)
10.1215 PAV	M12	10.0	6	15
10.1615 PAV	M16	10.0	6	20
10.2015 PAV	M20	10.5	6	24
10.2515 PAV	M25	13.0	8	30
10.3215 PAV	M32	13.5	8	37
10.4015 PAV	M40	14.0	8	46
10.5015 PAV	M50	16.5	10	56
10.6315 PAV	M63	17.0	12	70

With Sealing Ring

Colour: Grey RAL 7035

Product Code	Size	L (mm)	H (mm)	Ø (mm)
10.1215 PAV7035	M12	10.0	6	15
10.1615 PAV7035	M16	10.0	6	20
10.2015 PAV7035	M20	10.5	6	24
10.2515 PAV7035	M25	13.0	8	30
10.3215 PAV7035	M32	13.5	8	37
10.4015 PAV7035	M40	14.0	8	46
10.5015 PAV7035	M50	16.5	10	56
10.6315 PAV7035	M63	17.0	12	70

With Sealing Ring

Colour: Black RAL 9005

Product Code	Size	L (mm)	H (mm)	Ø (mm)
10.1215 PAVSW	M12	10.0	6	15
10.1615 PAVSW	M16	10.0	6	20
10.2015 PAVSW	M20	10.5	6	24
10.2515 PAVSW	M25	13.0	8	30
10.3215 PAVSW	M32	13.5	8	37
10.4015 PAVSW	M40	14.0	8	46
10.5015 PAVSW	M50	16.5	10	56
10.6315 PAVSW	M63	17.0	12	70

BLANKING PLUGS WITHOUT SIMPLE SEALING RINGS

Features

Measurement: Metric

Without Sealing Ring

Material: Polyamide PA6

Temperature Range of -30°C to +100°C

IP Rating: IP65

Without Sealing Ring

Colour: Grey RAL 7001

Product Code	Size	L (mm)	H (mm)	Ø (mm)
10.1215 PA	M12	10.0	6	15
10.1615 PA	M16	10.0	6	20
10.2015 PA	M20	10.5	6	24
10.2515 PA	M25	13.0	8	30
10.3215 PA	M32	13.5	8	37
10.4015 PA	M40	14.0	8	46
10.5015 PA	M50	16.5	10	56
10.6315 PA	M63	17.0	12	70

Without Sealing Ring

Colour: Grey RAL 7035

Product Code	Size	L (mm)	H (mm)	Ø (mm)
10.1215 PA7035	M12	10.0	6	15
10.1615 PA7035	M16	10.0	6	20
10.2015 PA7035	M20	10.5	6	24
10.2515 PA7035	M25	13.0	8	30
10.3215 PA7035	M32	13.5	8	37
10.4015 PA7035	M40	14.0	8	46
10.5015 PA7035	M50	16.5	10	56
10.6315 PA7035	M63	17.0	12	70

Without Sealing Ring

Colour: Black RAL 9005

Product Code	Size	L (mm)	H (mm)	Ø (mm)
10.1215 PA/SW	M12	10.0	6	15
10.1615 PA/SW	M16	10.0	6	20
10.2015 PA/SW	M20	10.5	6	24
10.2515 PA/SW	M25	13.0	8	30
10.3215 PA/SW	M32	13.5	8	37
10.4015 PA/SW	M40	14.0	8	46
10.5015 PA/SW	M50	16.5	10	56
10.6315 PA/SW	M63	17.0	12	70

MULTI-HOLE SEALING INSERTS

Suitable For

Perfect series 50.6xx PAzzzz

Perfect series 50.1xx PAzzzz

Features

Measurement: Metric

Material: Evoprene TPE

Temperature Range of -30°C to +100°C

Product Code ^*	Size	L (mm)	H (mm)	ØC (mm)
WJ-DM 12/3x2.3	M12	6.6	3x2.3	8.5
WJ-DM 16/2x4.5	M16	7.6	2x4.5	11.7
WJ-DM 16/4x2.3	M16	7.6	4x2.3	11.7
WJ-DM 20/2x4	M20	7.5	2x4.5	15.1
WJ-DM 20/2x6	M20	7.5	2x6	15.1
WJ-DM 20/4x5	M20	7.5	4x5	15.1
WJ-DM 25/3x6	M25	9.3	3x6	19.8
WJ-DM 25/3x7	M25	9.3	3x7	19.8
WJ-DM 25/4x5	M25	9.3	4x5	19.8
WJ-DM 25/4x6	M25	9.3	4x6	25.1
WJ-DM 32/4x7	M32	12.5	4x7	25.1
WJ-DM 32/4x8	M32	12.5	4x8	25.1
WJ-DM 32/4x8.5	M32	12.5	4x8.5	25.1
WJ-DM 40/5x8.5	M40	15.0	5x8.5	32.3
WJ-DM 12 STO	M12	6.6		8.5

^* M size/No. Holes x Hole size (mm)

info« prev 1 2 3 4 5...40 41 next »back to top

Filter Your Selection

Recent News

Nylon Metric Cable Glands
