    General Purpose Enclosures/Junction Boxes

    General Purpose Enclosures/Junction Boxes

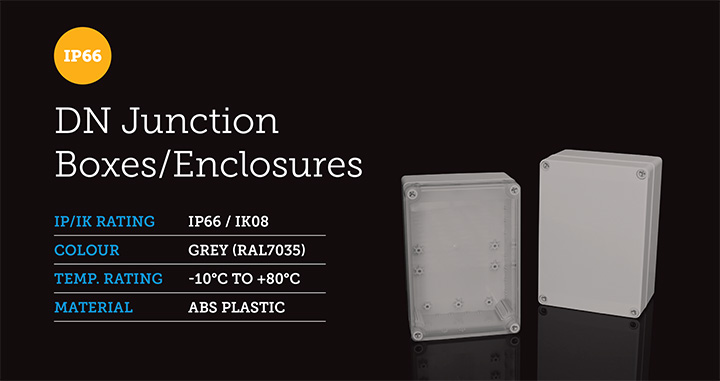

    Overview

    Manufactured from flame retardant ABS to UL94-HB, our range of DN Junction Boxes is manufactured to a very high quality which can endure high impact.

    A solid wall thickness of between 3 & 4mm makes these enclosures incredibly tough and durable. Each one is moulded with internal mounting stand-offs and vertical PCB mounting slots. The DN Junction Box is ideal for use as a cable junction box or to enclose PCBs, control & emech components.

    Available in 7 sizes, with optional Galvanised Steel, Component Mounting Plate.

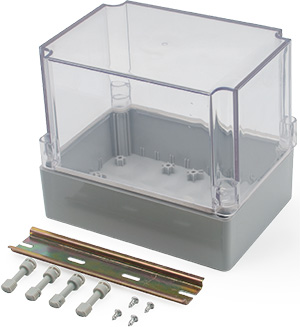

    Kit Includes:

    • Pre-cut length of 35mm DIN rail section

    • Fixing screws for supplied DIN rail

    General Purpose Enclosures/Junction Boxes

    Features

    IP66 & IK08 Rated
    Flame Retardant ABS to UL94-HB
    Multiple Slots For Vertical PCB Mounting
    Captive Screws in Lid
    Cover Available in Grey (RAL 7035) or Transparent Options
    Supplied with a 35mm DIN Rail Section & Mounting Screws

    Solid Covers

    Product CodeW (mm)H (mm)D (mm)
    DN12E12512575
    DN13E125125100
    DN14E17512575
    DN15E175125100
    DN16E175125125
    DN17E175125150
    DN18E175175125

    Transparent Covers

    Product CodeW (mm)H (mm)D (mm)
    DN12T12512575
    DN13T125125100
    DN14T17512575
    DN15T175125100
    DN16T175125125
    DN17T175125150
    DN18T175175125
