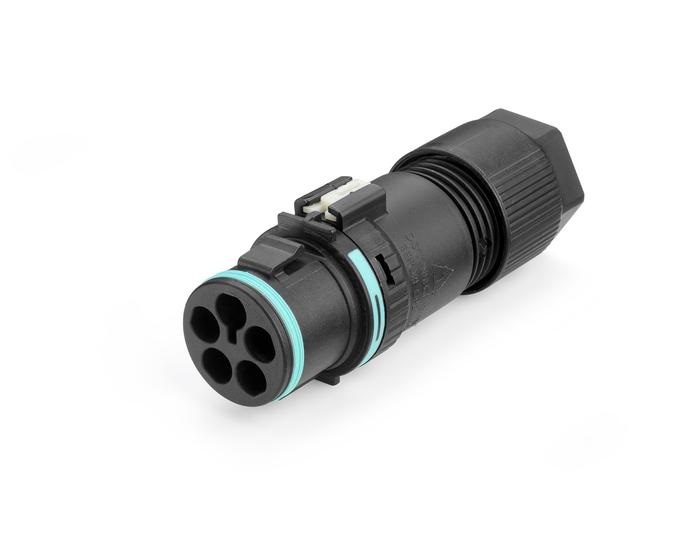

TeePlug & Sockets - CWP-PSP-BA-S05L (THB.389.A5E)
DESCRIPTION
Mini Plug, 5 pole Screw terminal, 7mm to 13mm cable diameter, IP68 rated 17.5A (AC/DC), 500V, 1 cable entry. Contact Markings: 1 - 2 - 3/L - N - E
FEATURES
- Miniaturization - a diameter of only 23mm (5 poles)
- Screw connection for field wiring (M2 screws - max 0.2 Nm) and versatility guaranteed during installation
- Available with over-molded cable
- Suitable For Class 2 Applications (Double Insulated) Max. 500V AC.
SPECIFICATION
| Silver-plated brass (zinc-plated screws) | |
| Plug | |
| 1 | |
| 17.5A AC/DC | |
| 500 | |
| 5 | |
| 7 | |
| 13 | |
| IP66/IP68 (5m/1h)/IP69 | |
| -40 | |
| 125 | |
| PA66 GF UL94 V0 |
