    DNCB DIN Rail Enclosures

    DIN Rail EnclosuresDNCB DIN Rail Enclosures

    100mm DIN Rail Mounting PCB Enclosures are available with solid or open tops and come with snap-on bases and terminal covers. They are ideal for use in the electromechanical and electronic markets and can be customised to suit individual needs.

    FEATURES

    • Sizes: W90 x L36,53.5,71 x H100mm
    • Materials: Flame retardant UL94-V0 Polycarbonate
    • Colours: Grey (G) / RAL 7035
    • Cover colours: Grey (G), red transparent (R) or clear (C)
    • DIN Rail 35mm mounting
    • Snap-on kits for easy assembly
    • Snap-on base
    • Suitable for PCB thickness up to 1.6 mm
    • Holds up to 3 PCB’s horizontally and 2-4 vertically
    • Option for incorporating a screw mounted heat sink
    • Snap-on terminal covers slotted for most pitches
    • Snap-on terminal covers with knockout holes for pitch 5/10
    • All enclosures can be customised

    SPECIFICATIONS

    Click on the product codes below to see individual product details:

    Product Code Dimensions H
    (mm)    		 W
    (mm)    		 D
    (mm)    		 Body Material Body Style Open
    DNCB/2V 100x90x36 100 90 36 Flame retardant UL94-V0 polycarbonate Vented Open
    DNCB/3V 100x90x53.6 100 90 53.6

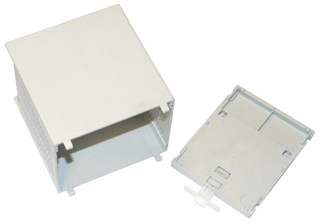

    DNCB/4V 100x90x71 100 90 71
    DNCB/2VST 100x90x36 100 90 36 Solid
    DNCB/3VST 100x90x53.6 100 90 53.6

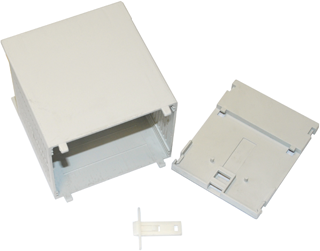

    DNCB/4VST 100x90x71 100 90 71
