IP66, IK10 Lockable solid door Steel Enclosures - DEDS Series
IP66, IK10 Lockable solid door Steel Enclosures - DEDS Series
IP66, IK10 Lockable solid door steel enclosures in 15 sizes with galvanised wall mounting brackets. Power coated galvanised Grey (RAL 7035) steel housing and galvanised back plate guaranteed for 3 years against corrosion.
FEATURES
- Galvanised steel housing guaranteed for 3 years against corrosion
- 2mm Galvanised steel back plate guaranteed for 3 years against corrosion
- Gland plate with IP66 sealing gasket for top or base mounting.
- Supplied c/w galvanised WALL MOUNTING BRACKETS
- Powder coated in Grey RAL7035
- All threaded studs are stainless steel thus fully corrosion proof

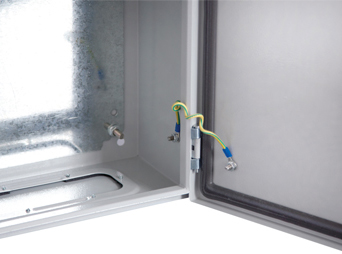

- All with Earth stud pre wired door to housing
- Compliance to IEC 60529
SPECIFICATIONS
Click on the product codes below to see individual product details:
Product Code | H (mm) |
W (mm) |
D (mm) |
Gland Plate | Mounting Plate | Number of Locks |
DEDS0099 | 250 | 200 | 130 | 130x60 | 265x150 | 1 |
DEDS0100 | 300 | 200 | 130 | 168x95 | 265x150 | 1 |
DEDS0200 | 350 | 250 | 150 | 168x95 | 315x200 | 1 |
DEDS0300 | 500 | 400 | 175 | 208x95 | 465x350 | 1 |
DEDS0400 | 400 | 300 | 170 | 208x95 | 365x250 | 1 |
DEDS0500 | 400 | 300 | 220 | 208x95 | 365x250 | 1 |
DEDS0600 | 500 | 350 | 190 | 208x95 | 465x300 | 1 |
DEDS0601 | 500 | 400 | 200 | 317x120 | 465x300 | 1 |
DEDS0700 | 500 | 400 | 240 | 345x146 | 465x350 | 1 |
DEDS0800 | 600 | 400 | 200 | 345x146 | 565x350 | 2 |
DEDS0900 | 800 | 400 | 200 | 317x120 | 765x550 | 2 |
DEDS1000 | 700 | 500 | 250 | 445x146 | 665x450 | 2 |
DEDS1001 | 800 | 600 | 260 | 417x120 | 765x550 | 2 |
DEDS1012 | 1000 | 600 | 300 | 445x146 | 965x550 | 2 |
DEDS1013 | 1250 | 600 | 300 | 445x146 | 1215x550 | 2 |
