IP66 General Purpose Enclosures
IP66 General Purpose Enclosures

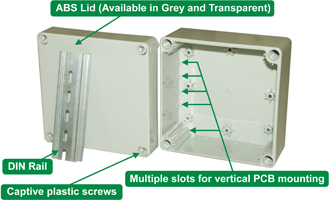

FEATURES
- Available in 6 sizes
- Sealed to IP66
- Captive plastic screws in lid
- Supplied c/w 35mm DIN RAIL section & mounting screws etc
- Multiple slots for vertical PCB mounting
- Supplied in Flame Retardant ABS to UL94-HB
- Top lid available in solid grey (as base) or transparent
- Robust to IK08
SPECIFICATIONS
Click on the product codes below to see individual product details:
Product Code | Dimensions | H (mm) |
W (mm) |
D (mm) |
Enclosure Material Range |
Temperature Rating | Lid |
DN12E | 125x125x75 | 125 | 125 | 75 | ABS | -10°C to +80°C | Grey |
DN13E | 125x125x100 | 125 | 125 | 100 | ABS | -10°C to +80°C | |
DN14E | 125x175x75 | 125 | 175 | 75 | ABS | -10°C to +80°C | |
DN15E | 125x175x100 | 125 | 175 | 100 | ABS | -10°C to +80°C | |
DN16E | 125x175x125 | 125 | 175 | 125 | ABS | -10°C to +80°C | |
DN17E | 125x175x150 | 125 | 175 | 150 | ABS | -10°C to +80°C | |
DN12T | 125x125x75 | 125 | 125 | 75 | ABS | -10°C to +80°C | Transparent |
DN13T | 125x125x100 | 125 | 125 | 100 | ABS | -10°C to +80°C | |
DN14T | 125x175x75 | 125 | 175 | 75 | ABS | -10°C to +80°C | |
DN15T | 125x175x100 | 125 | 175 | 100 | ABS | -10°C to +80°C | |
DN16T | 125x175x125 | 125 | 175 | 125 | ABS | -10°C to +80°C | |
DN17T | 125x175x150 | 125 | 175 | 150 | ABS | -10°C to +80°C |

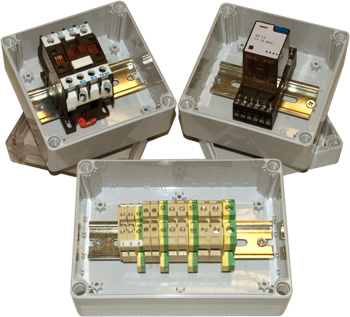

DIN Rail
The Junction boxes are supplied with DIN Rail strip and mounting screws.

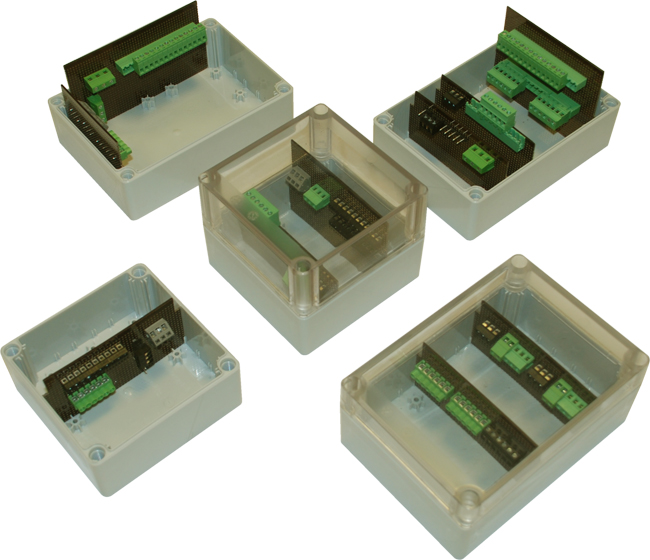

PCB Mounting
Versatile mounting options enable boards to be positioned from side to side, corner to corner or mounted on the pillars located on the base.
Enclosures supplied c/w DIN Rail strip and mounting screws. Accessories are optional extras.
