TeeBox (Up to IP68)
TeeBox (Up to IP68)
The TeeBox has also been used to protect connections and LED drivers in one of the World’s longest shopping centres and some of the most glamorous private yachts in existence.
FEATURES
- Comprehensive range of connection options.
- Protection rating up to IP68 depending on product.
- Unique 3 pole T connector TH029 available for use in TH209 & TH211 range, no cable forming required.
- TH211 available as full KIT version complete with TH029 fitted.
- Temperature range of -20°C to +125°C.
- Chassis mount and in-line Micro series TeePlugs with 5 poles now available.
SPECIFICATIONS
Click on the product codes below to see individual product details:
TH200 Series - Black Nylon 66
| Product Code | IP Rating | Poles | Cable Entries | Insert Type | H (mm) |
W (mm) |
L (mm) |
Min-Max Cable Diameter (mm) |
Max Conductor Size (mm2) |
Max Current (A) |
Max Current (V) |
Description |
| THK.200.C1E | 67 | 3 | 3 | Barrier | 20 | 41 | 82 | 4-9.5 | 2.5 | 25 | 450 | T splitter (three cables), includes terminal block and fixing kit |
| THK.200.3T | 67 | 3 | 3 | Barrier | 20 | 41 | 82 | 4-9.5 | 4.0 | 32 | 450 | T splitter with unique TH029 T connector fitted |
TH209 Series - Black Nylon 66
| Product Code | IP Rating | Poles | Cable Entries | Insert Type | H (mm) |
W (mm) |
L (mm) |
Min-Max Cable Diameter (mm) |
Max Conductor Size (mm2) |
Max Current (A) |
Max Current (V) |
Description |
| THA.209.A1B | 54 | 4 | 28 | 65 | 108 | 7-14 | Junction box suitable for use directly with terminal block TH032 or with TH026/TH027 with support plate 6000175CC | |||||
| THA.209.A1A | 68 | 4 | 28 | 65 | 108 | 7-14 | ||||||
| THA.209.A1A8PKIT | 68 | 8 | 4 | Barrier | 28 | 65 | 108 | 7-14 | 4 | 32 | 450 | Junction box supplied complete with 8 pole (1x3 and 1x5 pole) connector mounted on support plate |
| THA.209.D1B | 68 | 3 | 28 | 65 | 108 | 7-14 | Junction box suitable for use directly with terminal block TH032 or with TH026/TH027 with support plate 6000175CC | |||||
| THA.209.D1A | 68 | 3 | 28 | 65 | 108 | 7-14 |

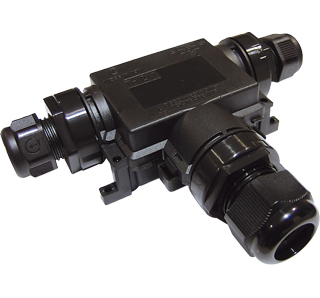

TH211 Series - Black Nylon 66
| Product Code | IP Rating | Poles | Cable Entries | Insert Type | H (mm) |
W (mm) |
L (mm) |
Min-Max Cable Diameter (mm) |
Max Conductor Size (mm2) |
Max Current (A) |
Max Current (V) |
Description |
| THA.211.A1B | 54 | 3 | 28 | 65 | 108 | 7-14 | Junction box suitable for use directly with terminal block TH029 or with TH026/TH027 with support plate 6000194CC |
|||||
| THA.211.A1A | 68 | 3 | 28 | 65 | 108 | 7-14 | ||||||
| THA.211.A1A8PKIT | 68 | 8 | 3 | Barrier | 28 | 65 | 108 | 7-14 | 4 | 32 | 450 | Junction box supplied complete with 3 pole TH029 connector for direct mounting inside unit |
| THA.211.D1B | 54 | 3 | 3 | 28 | 65 | 108 | 7-13.5 | Junction box suitable for use directly with terminal block TH029 or with TH026/TH027 with support plate 6000194CC |
||||
| THA.211.D1A | 68 | 3 | 28 | 65 | 108 | 7-13.5 |
TH622/TH623 SERIES - Black Nylon 66 Power Distribution Units
| Product Code | IP Rating | Poles | Cable Entries | H (mm) |
W (mm) |
L (mm) |
Min-Max Cable Diameter (mm) |
Max Conductor Size (mm2) |
Max Current (A) |
Max Current (V) |
Description |
| THH.622.L3A | 68 | 3 | 4 | 28 | 65 | 200 | 7-12 | 4.0 | 10 | 400 | 3 pole power distribution box, 1x input, 3x output (Four cables). 10A max input. Supplied complete with pre-cabled box and 4 connectors |
| THH.622.C3A | 54 | 3 | 4 | 28 | 65 | 200 | 7-12 | 4.0 | 10 | 400 | |
| THH.623.L3A | 68 | 3 | 4 | 28 | 65 | 200 | 7-12 | 4.0 | 17.5 | 400 | 3 pole power distribution box, 1x input, 3x output (Four cables). 17.5A max input. Supplied complete with pre-cabled box and 4 connectors |
TH392 SERIES - Black and Green PA66 GF UL94V0/UL94 V2, Caps/TPE Seals
| Product Code | IP Rating | Poles | Cable Entries | Insert Type | H (mm) |
W (mm) |
L (mm) |
Min-Max Cable Diameter (mm) |
Max Conductor Size (mm2) |
Max Current (A) |
Max Current (V) |
Description |
| THB.392.A4A | 68 | 4 | 4 | Screw | 28 | 54 | 80 | 8-12 | 4 | 17.5 | 450 | Micro series power distributor, 1 input 3 output, sealed interconnections, IP68 |
| THB.392.A4B | 68 | 4 | 3 | Screw | 28 | 54 | 80 | 8-12 | 4 | 17.5 | 450 | Micro series power distributor, 1 input 2 output, sealed interconnections, IP68 |
| THB.392.R4A | 68 | 4 | 4 | Screw | 28 | 54 | 80 | 8-12 | 4 | 17.5 | 450 | Micro XDry series anti condensation power distributor, 1 input 3 output, sealed interconnections, IP68 |
| THB.392.R4B | 68 | 4 | 3 | Screw | 28 | 54 | 80 | 8-12 | 4 | 17.5 | 450 | Micro XDry series anti condensation power distributor, 1 input 2 output, sealed interconnections, IP68 |
