TeePlug (Up to IP68)
IP68 TeePlug (Up to IP68)
The TeePlug has been used to provide connections for the lighting system at the Singapore Grand Prix, Formula 1’s first night time race. Here the quick and reliable connections were put under extreme pressure as Singapore is known for its frequent and heavy rainfall.
FEATURES
- Up to IP68 versions available.
- Various configurations available.
- Components are keyway coded to ensure correct assembly.
- All products are quick and simple to install.
- Bulkhead/chassis mount options available (depending on product type).
- Temperature range of -20°C to +125°C.
- Grey colour available on request.
- Chassis mount and in-line Micro series TeePlugs with 5 poles now available.
SPECIFICATIONS
Click on the product codes below to see individual product details:
TH384 Series - IP68 Plug and Socket
| Product Code | IP Rating | Poles | Colour | Material | Ø (mm) |
L (mm) |
Min-Max Cable Diameter (mm) |
Max Conductor Size (mm2) |
Max Current (A) |
Max Current (V) |
Description |
| THB.384.A2A | 68 | 2 | Black | Nylon 66 | 27 | 55 | 7-12 | 4.0 | 17.5 | 400 | Plug |
| THB.384.A1A | 3 | Plug | |||||||||
| THB.384.B2A | 2 | Socket | |||||||||
| THB.384.B1A | 3 | Socket | |||||||||
| THB.384.3KIT | 3 | Plug and Socket Kit. Can be panel mounted with additional M20 Locknut |
TH985 Series - IP68 Panel Mount Connectors, Minimum Rear Profile
| Product Code | IP Rating | Poles | Colour | Material | Ø (mm) |
L (mm) |
Min-Max Cable Diameter (mm) |
Max Conductor Size (mm2) |
Max Current (A) |
Max Current (V) |
Description |
| THB.385.A2A | 68 | 2 | Black | Nylon 66 | 28 | 35 | N/A | 4.0 | 17.5 | 400 | Chassis mounting plug supplied complete with locknut |
| THB.385.A1A | 3 |
TH386 Series - IP67 Panel Mount - Self Locking
| Product Code | IP Rating | Poles | Colour | Material | Ø (mm) |
L (mm) |
Min-Max Cable Diameter (mm) |
Max Conductor Size (mm2) |
Max Current (A) |
Max Current (V) |
Description |
| THB.386.A2A | 67 | 2 | Black | Nylon 66 | 30 | 35 | N/A | 4.0 | 17.5 | 400 | Self locking chassis mounting plug (no rear locknut required but requires locking tool/dust cap). |
| THB.386.A1A | 3 | ||||||||||
| 60B01070C |

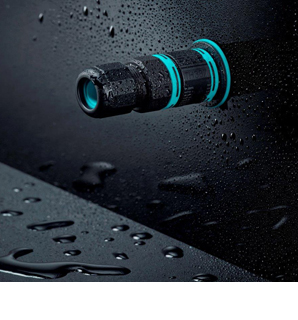

TH387 - IP68 Micro Teeplug Series
| Product Code | IP Rating | Poles | Colour | Material | Ø (mm) |
L (mm) |
Min-Max Cable Diameter (mm) |
Max Conductor Size (mm2) |
Max Current (A) |
Max Current (V) |
Description |
| THB.387.A4A | 68 | 4 | Black | Nylon 66 | 23 | 52 | 7-12 | 4 | 17.5 | 450 | Micro Teeplug IP68 4 pole cable mount Plug connector for use with above TH387 series cable mount or chassis mount power sockets. |
| THB.387.B4A | 68 | 4 | Black | Nylon 66 | 23 | 33 | 7-12 | 4 | 17.5 | 450 | Micro Teeplug IP68 4 pole cable mount Socket connector for use with above TH387 series cable mount or chassis mount plugs. |
| THB.387.C4A | 65 | 4 | Black | Nylon 66 | 23 | 33 | 7-12 | 4 | 17.5 | 450 | Micro Teeplug IP68 4 pole chassis mount Plug connector for use with above TH387 series cable mount socket connector. |
| THB.387.D4A | 65 | 4 | Black | Nylon 66 | 23 | 33 | 7-12 | 4 | 17.5 | 450 | Micro Teeplug IP68 4 pole chassis mount socket connector for use with above TH387 series cable mount plug connector. |
| THB.387.E4A | 68 | 4 |
Black/Green |
PA66 | 24 | 34 | 4 | 17.5 | 450 | Micro TeePlug Panel mount 4 pole male contacts, mounting nut supplied. | |
| THB.387.E5A | 68 | 5 | Black/Green Seals |
PA66 | 24 | 34 | 4 | 17.5 | 450 | Micro TeePlug Panel mount 5 pole male contacts, mounting nut supplied. | |
| THB.387.F4A | 68 | 4 | Black/Green Seals |
PA66 | 24 | 34 | 4 | 17.5 | 450 | Micro TeePlug Panel mount 4 pole female contacts, mounting nut supplied. | |
| THB.387.F5A | 68 | 5 | Black/Green Seals |
PA66 | 24 | 34 | 4 | 17.5 | 450 | Micro TeePlug Panel mount 5 pole female contacts, mounting nut supplied. | |
| THB.387.C5A-Kit | 65 | 5 | Black/Green Seals |
PA66 | 24 | 34 | 4 | 17.5 | 450 | Micro TeePlug Panel mount 5 pole male contacts, mounting nut/screws supplied. | |
| THB.387.D5A-Kit | 65 | 5 | Black/Green Seals |
PA66 | 24 | 34 | 4 | 17.5 | 450 | Micro TeePlug Panel mount 5 pole female contacts, mounting nut/screws supplied. | |
| THB.387.A5A | 68 | 5 | Black/Green Seals |
PA66 | 23 | 52 | 7-12 | 4 | 17.5 | 450 | Micro TeePlug 5 pole in-line plug contacts 1 cable entry. |
| THB.387.B5A | 68 | 5 | Black/Green Seals |
PA66 | 23 | 49 | 7-12 | 4 | 17.5 | 450 | Micro TeePlug 5 pole in-line socket contacts 1 cable entry. |
TH405 Series - IP68 Plug and Socket
| Product Code | IP Rating | Poles | Colour | Material | Ø (mm) |
L (mm) |
Min-Max Cable Diameter (mm) |
Max Conductor Size (mm2) |
Max Current (A) |
Max Current (V) |
Description |
| THB.405.A2B | 68 | 3 | Black | Nylon 66 | 27 | 55 | 7-12 | 4.0 | 25 | 400 | Plug |
| THB.405.A2A | 68 | 2 | Black | Nylon 66 | 27 | 7-12 | 4.0 | 17.5 | 400 | ||
| THB.405.A2E | 68 | 6 | Black | Nylon 66 | 27 | 7-12 | 4.0 | 17.5 | 400 | ||
| THB.405.B2B | 68 | 6 | Black | Nylon 66 | 27 | 70 | 7-12 | 4.0 | 25 | 400 | Socket |
| THB.405.B2A | 68 | 5 | Black | Nylon 66 | 27 | 7-12 | 4.0 | 17.5 | 400 | ||
| THB.405.B2A | 68 | 6 | Black | Nylon 66 | 27 | 7-12 | 4.0 | 17.5 | 400 | ||
| THB.405.A2B-KIT | 68 | 3 | Black | Nylon 66 | 27 | 130 | 7-12 | 4.0 | 25 | 400 | Socket & Socket Kit complete with assy tool Plug |
| THB.405.RPDKIT | 68 | 5 | Black | Nylon 66 | 27 | 7-12 | 4.0 | 17.5 | 400 | ||
| 600012200 | 3 | 3 pole assy tool | |||||||||
| 600009600 | 5 | 5 pole assy tool | |||||||||
| 6DB00750C | 6 | Black | Nylon 66 | Combined 6 pole assy tool with dust cap |
